WiGiG or USBC Laptop Dock Station 60W PD
- Power and charge your laptop with support for USB Power Delivery (up to 60 watts) when connected through USB-C
- Supports dual monitors with 1920 x 1200p @ 60Hz resolution on each display (DisplayPort and HDMI), or a single 4K monitor 3840 x 2160p @ 30Hz
- Connect your peripherals with 4x USB-A ports (2x USB 3.0, 2x USB 2.0) including a front-panel fast-charge and sync port (supports USB Battery Charging Specification 1.2)
- Transform your USB-C enabled Windows 10 laptop into a full-sized workstation
- Compact design sits either upright (in solid stand) or horizontal
- Gigabit Ethernet RJ45 port (with PXE Boot support) and Wake-on-LAN (WOL), 3.5mm headset port
Description
This USB-C dock lets you transform your Windows 10 laptop into a full-sized workstation, connecting two external monitors (DisplayPort and HDMI®) or single 4K monitor.
Power your dock and laptop with one adapter.
With 60W Power Delivery, the docking station simultaneously powers and charges your laptop, while powering all devices connected to your laptop and the dock. A single adapter powers your dock and laptop.
Dual-monitor video output.
Create a dual-monitor setup by connecting:
1x HDMI display and 1x DisplayPort display at 1920 x 1200p @ 60Hz
The USB-C dock also lets you connect to a single high-resolution 4K monitor, with:
1x HDMI display or 1x DisplayPort display at 3840 x 2160p @ 30Hz
Ample connections.

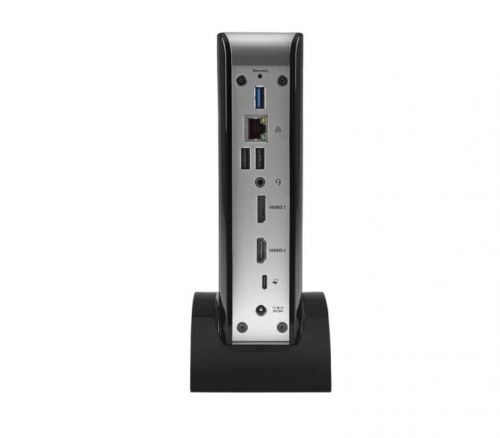

The USB-C dock has four USB 3.0 ports (2x USB 3.0 and 2x USB 2.0 ports including a front-accessible fast charge-and-sync port) plus Gigabit Ethernet (with PXE Boot support) and headset connections.
Versatile setup.

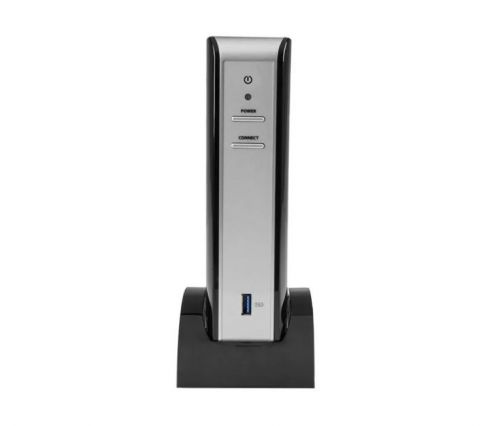

The dock’s small footprint fits into any workspace. It sits solidly in the supplied stand, or you can position it horizontally.
Wireless docking option, where supported.
The dock also supports WiGig® if your laptop supports it. With wireless docking, you dock and undock your laptop without having to connect and disconnect a cable, saving time. Note: USB Power Delivery is only supported when connected through USB-C, and is not supported with WiGig. For WiGig, the dock must be positioned vertically.
The DKWG30DPHPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
Lead Time
1
Brand
StarTech.com
Categories
Cables & Adapters
Category
Docking Stations
Colour
Black/silver
Connections
USB Type-C USB 3.0 / DisplayPort / HDMI / USB Type-A USB 3.0 / USB 3.0 A (Fast Charge) / USB Type-A USB 2.0 / 3.5mm Mini Jack / RJ-45
Dimensions
52x121x203mm
Manufacturer
StarTech
Maximum Data Transfer Rate
5 Gbps (USB 3.0) / 2 Gbps (Ethernet, Full-Duplex)
Number Of Ports
9 Ports
Power
AC Adapter
Type
Docking Stations
USB Speed
Usb-c
Warranty
3 Year Warranty
Weight
655g
