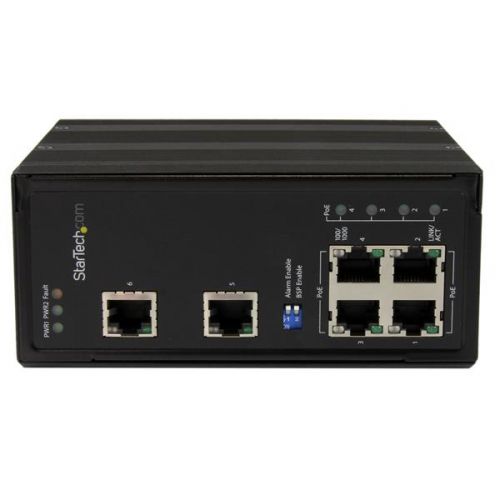

StarTech.com 6 Pt Unmanaged Ind. GB Switch 4xPoE Plus
- 4 PoE+/ PSE (Power + Data) Gigabit IEEE 802.3at / 802.3af compliant ports, plus 2 additional GbE ports
- Supports up to 55V, 30 Watts max output per PoE port
- Redundant power inputs via 24/48V DC terminal block with alarm relay
- Accepts wide-range 20-57V DC power input
- DC to DC 24V step-up converter
- Wide operating temperature range -40 degreesC to 75 degreesC (-40 degreesF to 167 degreesF)
Description
Fully compliant with IEEE 802.3at / 802.3af, the industrial Ethernet switch offers up to 30 Watts output per port, through the four PoE+ / PSE ports, while all six shielded RJ45 ports support auto-negotiation of speed and duplex for 10/100/1000Mbps Ethernet networks.
Providing seamless power failover in the event of power dips or failures, the switch features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. When used with multiple power sources, the switch supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs.
The switch also features an internal DC-DC converter with voltage regulation, which provides the PoE injector with high voltage output from a low voltage input (<24V DC), and ensures the supplied power to your connected devices remains stable during voltage spikes and dips.

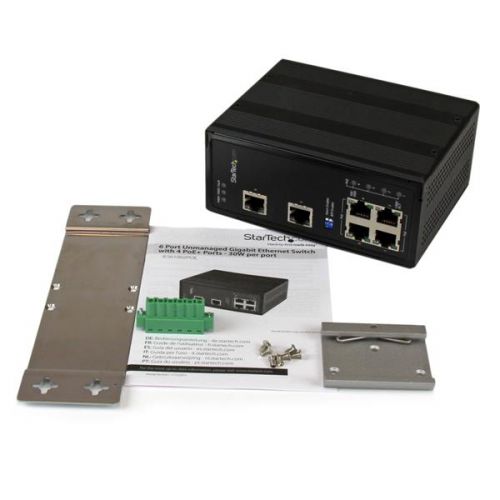

To ensure dependable performance in harsh environments, this power over Ethernet switch features an extended operating temperature range (-40°C to 75°C), a rugged IP-30 rated case design and includes both DIN-Rail and wall-mount brackets for flexible installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Lead Time
2
Brand
StarTech.com
Categories
Networking
Category
Ethernet Switches
Data Rates
2Gbps
Dimensions
135x63x106mm
Manufacturer
StarTech
Number Of Ports
6 Ports
Type
Ethernet Switches
Warranty
2 years warranty
Weight
831g
